Pool and Patio Renovation at Hilton Garden Inn, Scottsdale, AZ

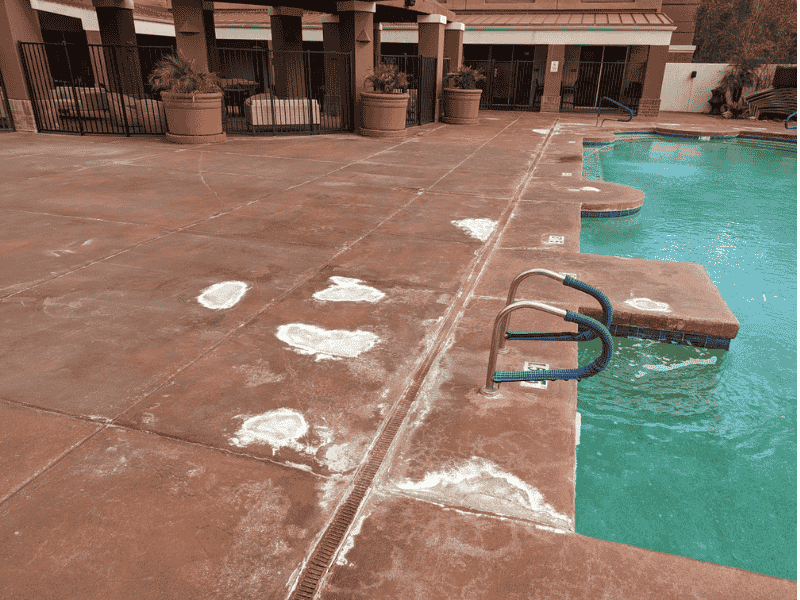

Before

After

In January 2023, Hilton Garden Inn in Scottsdale, Arizona, faced severe issues with its hotel pool deck and patio area. The existing coatings had failed multiple times, and the concrete was extensively cracked with water damage. Frequent repairs were costly and ineffective, prompting the hotel to engage Rock Star Coating Pros for a complete overhaul of the deck system.

Client Overview

Client:

Hilton Garden Inn Hotel

Property Type:

Commercial hotel pool and patio

Location:

Scottsdale, Arizona

The Challenge

The existing coatings had failed repeatedly, leading to severe concrete cracking and water damage throughout the pool deck and patio. The client had been performing annual repairs without successfully addressing the underlying issues, resulting in further damage and increased maintenance costs.

Job Scope

Type of Job

• Removal of failed pool deck and patio coatings
• Concrete repair
• Installation of a 6-layer decorative quartz deck system.

Materials Used

• Vapor Shield concrete sealer/densifier
• Epoxy primer
• Decorative quartz media broadcast into wet polyaspartic (x2)
• Clear polyaspartic topcoat (x2)

Area of the Property Repaired

5,605 sq ft pool deck and patio area.

Duration of the Project

2 weeks.

The Solution

Rock Star Coating Pros began by removing two layers of the existing coatings entirely to expose the damaged concrete. The team then repaired 265 feet of concrete cracks, installed 145 feet of new deck drains, and sealed 700 feet of concrete joints. Following the concrete repairs, a comprehensive 6-layer decorative quartz deck system was installed, using Davenport-colored quartz from Torginol. The final layers included two coats of clear polyaspartic topcoat for enhanced durability and a slip-resistant surface.

Colors

• Deck System: Davenport-colored quartz from Torginol

Results

The new decorative quartz deck system not only resolved the previous coating failures but also provided a durable, visually appealing surface. The enhancements improved the pool area’s functionality, minimized future maintenance, and significantly boosted the hotel’s aesthetic appeal.
